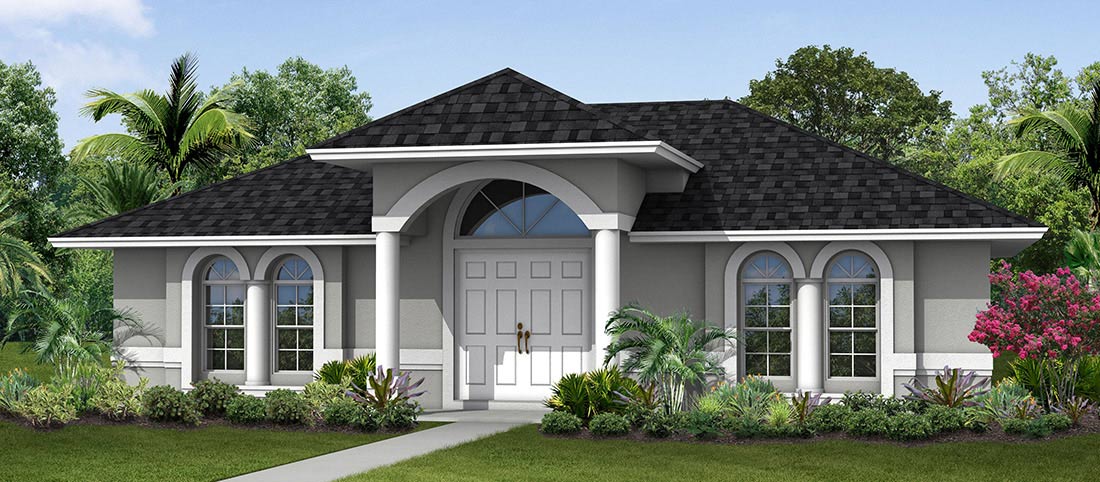

Elevation - Abuelitas Casa - Header

Abuelita’s Casa (Guest House)

  • Elevation - Abuelitas Casa
  • Kitchen - Abuelitas Casa
  • Kitchen - Abuelitas Casa
  • Dining - Abuelitas Casa

1

Bedrooms
(PLUS Den)

1

Bathrooms

0

Car Garage

1,000

A/C Square Feet

Or contact us to ask a question.

Description

Abuelita’s Casa is RJM’s popular guest house which can be built on your lot/land. This floor plan is fully customizable and features an open living space, complete kitchen, den, and primary bedroom suite and bathroom.

Elevation Options

Elevation - Abuelitas - Square Banding

Square Columns with Banding

Round Columns with Banding

Elevation - Abuelitas - Square No Banding

Square Columns, No Banding

Floor Plan Options

Abuelita’s Casa

Living A/C: 1,000 SF | Total Area: 1,051 SF

Build From:      The low-$200s*

* Price reflects the cost of building on your prepared lot and can vary based on location.

1

Bedrooms
(PLUS Den)

1

Bathrooms

0

Car Garage

Abuelita's Casa Floor Plan

Standard Features*

Guest Home Standard Features

The RJM Standard

  • Impact, double-paned insulated low “E” windows and fiberglass exterior doors
  • R.20 spray foam insulation in all AC spaces and garage
  • 24” porcelain tile in all main living areas
  • Stainless steel appliances
  • Permit and impact fees included
  • Builder involved one-on-one with your custom design
  • Licensed structural/site engineer involved with all designs
  • Homes are designed with your final approval
  • Limited lifetime architectural shingles
  • Carrier High efficiency air conditioning system

  • 3000 PSI steel-reinforced monolithic concrete foundation
  • “Fiber mesh” in concrete for superior bonding
  • Concrete block exterior walls with steel-reinforced beams and columns
  • Hurricane resistant “hip-style” roof system, where feasible
  • 5/8” CDX plywood roof sheathing
  • Stucco soffits reinforced with wire mesh
  • Pre engineered roof trusses, reinforced with additional engineering and strapping

  • Impact, insulated, low “E” windows and doors
  • R.20 spray foam insulation in AC spaces
  • ENERGY STAR certified Nest thermostats
  • LED bulbs, where feasible
  • Double 6’ 8” high impact fiberglass entry doors
  • Foam insulation around exterior doors and windows
  • Quick recovery water heater
  • Draft stop around all doors, windows, electrical and plumbing
  • Air flow adjustment in each supply duct
  • Customized energy calculations
  • AC ducts in conditioned space, for optimal energy efficiency
  • R 4.1 foil insulation over exterior block

  • Choice of 24” floor tile in great room, foyer, kitchen, & breakfast nook
  • Tile floors include high quality underlayment
  • Steel frame interior walls for termite resistance
  • 5 1/4” baseboards throughout home
  • In-wall pest control system
  • Rounded corners in main living areas
  • Knockdown finish on main living area walls & ceilings, bedroom & bathroom to have orange peel finish
  • Premium Porter latex paint
  • Quality washable latex enamel on doors and trim
  • Air-conditioned walk-in closet
  • Water-resistant board used around showers and tubs
  • Designer carpeting with high density pad
  • Vinyl-coated wire shelving in all closets and laundry room
  • Italian marble window sills

  • Limited lifetime architectural roof shingles
  • Classic rough sawn fascia board
  • Hurricane rated steel reinforced garage door
  • “High Rib” lath and decorative cement soffits
  • 5,000 SF of Bahia sod
  • Pressure-treated lumber for all wood to concrete applications
  • Full soil & perimeter termite treatment

  • 36” Upper cabinets, full overlay, slow close hinges
  • Choice of granite countertop color & edge with backsplash
  • Fully adjustable shelves in cabinets
  • Moen fixture with pull out sprayer
  • Waterline for icemaker/dispenser
  • Choice of raised or level breakfast bar
  • Large undermount double or single bowl stainless steel sink
  • Stainless steel appliances
  • 25 cubic foot side by side refrigerator with water and ice access in the door
  • Over the range microwave, vented to the exterior
  • Self cleaning electric smooth top range
  • Insulated four cycle automatic dishwasher

  • Granite countertops with undermount sinks
  • Large roman tub
  • Pocket door from bedroom to bath
  • Granite countertops with undermount sinks
  • Counter length mirror
  • Shower walls tiled to the ceiling
  • Framed glass enclosure for shower
  • Exhaust fan vented outside with separate switch
  • Raised vanity (34”) high

  • Moen® Plumbing Fixtures (Brantford or Eva)
  • PEX underground supply lines
  • Porcelain-coated steel tubs in second baths
  • Premium elongated water closets
  • “Quick Recovery” water heater
  • (2) Exterior hose connections
  • Connections for washer and dryer with dryer box

  • Recessed “high-hat” lighting in kitchen (2)
  • Phone outlets with CAT5 high-speed wiring (1)
  • Each phone “drop” carries up to two phone lines
  • Cable outlets with coaxial RG-6 (3)
  • Premium lighting fixtures, where feasible
  • Decora style “rocker” switches throughout home
  • Weatherproof exterior GFI electrical outlets (3)
  • Fan outlet pre-wires with switches in bedroom and great room

* Standard features are informational only and are subject to change. Please contact a sales associate for details.
